The idea & the process
How electroplating works
A metal salt solution, a DC power source and a lot of know-how. Here’s what happens when your parts go into the tank.
Inside the line
From raw part to finished finish
-
01
Clean
Oils, scale and soils are stripped so the new metal bonds directly to the part.
-
02
Activate
A quick acid dip removes oxides and readies the surface for plating.
-
03
Electro-deposit
With the part as the cathode, current drives metal ions out of solution and onto the part.
-
04
Post-treat
Chromates, passivates, sealants or baking lock in the protection.
-
05
Verify
Thickness and appearance are inspected before parts are packed and shipped.

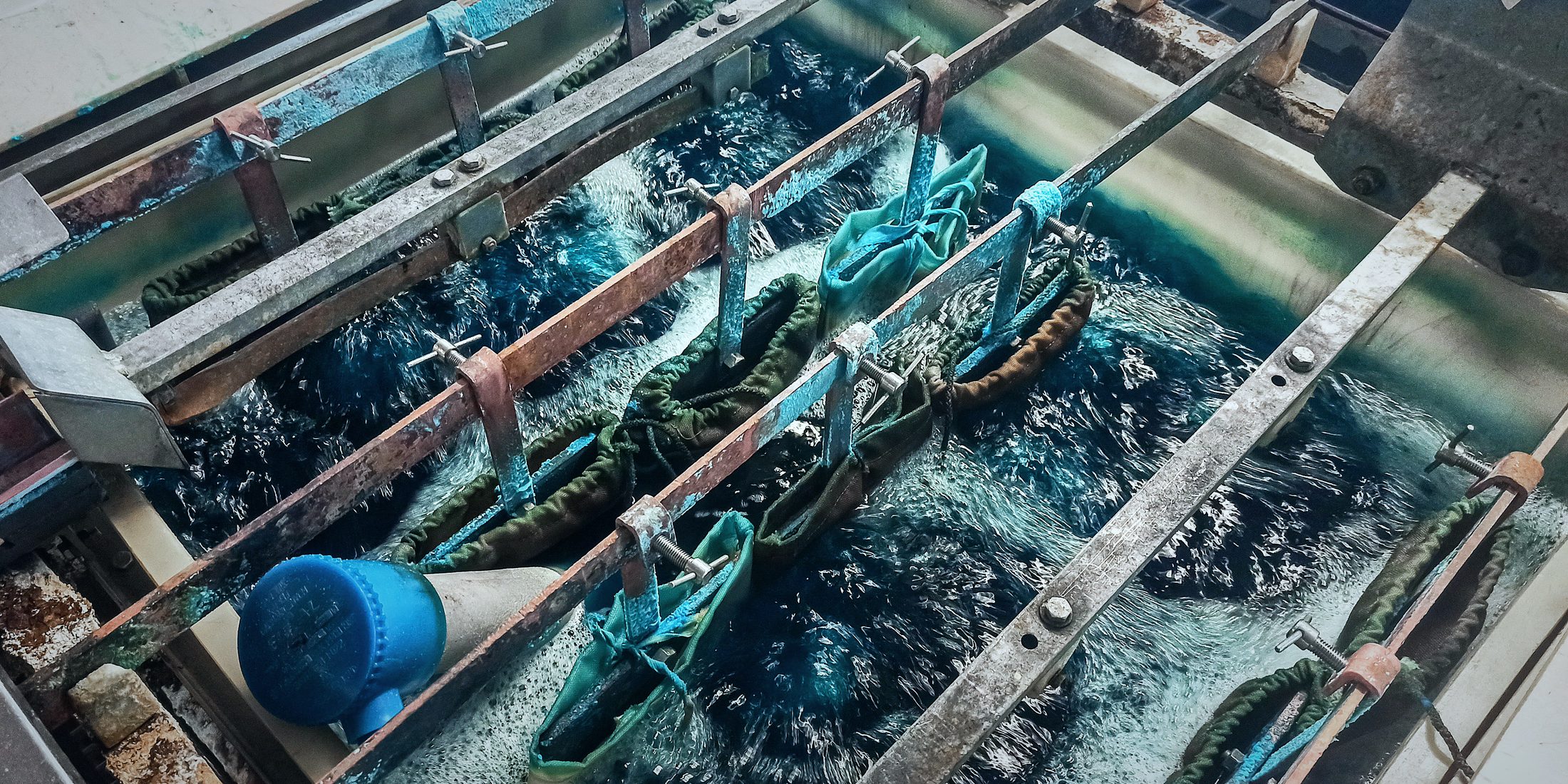

In the tank
Current, chemistry and care
Clean parts, a balanced bath and steady DC current: that is how an even, durable finish is built.
The science in plain terms
Electroplating uses a solution of a metal salt and an electrical direct current to coat an electrically conductive item with a layer of that metal. The process that makes it happen is called electro-deposition, and it works like a battery (a galvanic cell) running in reverse.
The part to be coated is placed in a tank containing a solution of one or more metal salts and is connected to an electrical circuit. When current passes through the circuit, electrons moving through the solution drive a chemical reaction: the dissolved metal is reduced to its ground state, becoming pure metal rather than a metal compound, and it deposits on the part, covering it in an even layer.
Electroplating vs. other finishes
Electroplating adds metal to a part. That sets it apart from electropolishing, which removes a thin layer to smooth and brighten a surface, and from anodizing, which grows an oxide layer out of the base metal itself, usually on aluminum.
